Moon 10

Air plus

Air plus

10

kW

A+

Classe

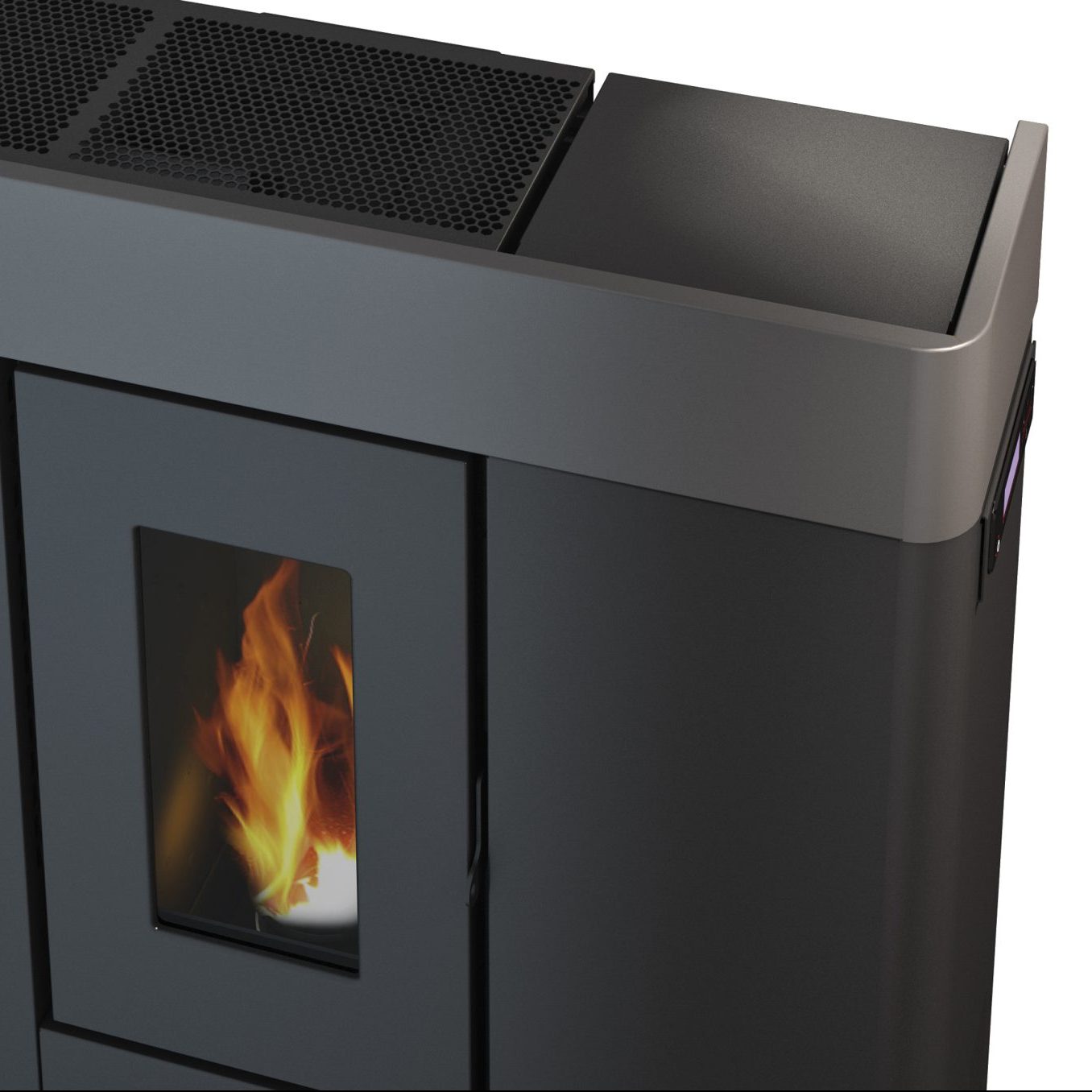

Airtight stove with reduced depth (26,4 cm), ideal for installation in tight spaces. Moka, Bordeaux, Titanium steel cladding at the top. Cast iron door. Thanks to the possibility of conveying air (max 6 meters), this stove can heat another room. Installation is extremely versatile thanks to an upper, rear or side smoke outlet. Cast iron brazier with LIVING FIRE system for a more aesthetically pleasing and stable flame. Daily/weekly programming, also via Wi-Fi and Bluetooth connection (included). The stove can be connected to a room thermostat.

Heatable m³: max 285

Mind@ware Object2VR Player Wordpress Widget
Mind@ware Object2VR Player Wordpress Widget

Power

Min 3 kW
Max 10 kW

Thermal efficiency

Min 94.5 %
Max 91 %

Heatable m³

Min 86
Max 285

Fuel type

Pellet Ø 6 mm

Hourly consumption

Min 0.66 kg/h
Max 2.24 kg/h

Autonomy

Min 6.7 h
Max 22.7 h

Hopper capacity

15 kg

Consumption

85.2 W

Exhaust outlet

Ø 80 mm

Dimensions

L 95.2 cm
P 26.4 cm
H 99 cm

Weight

103 kg

Energy Efficiency Class

A+

Certifications

Download

89CD000864.pdf (en)

89CD000952.pdf (en)

89TD30025.pdf (en)

89022053B.pdf (en)

89CD001305.pdf (en)

89022053A.pdf (en)
